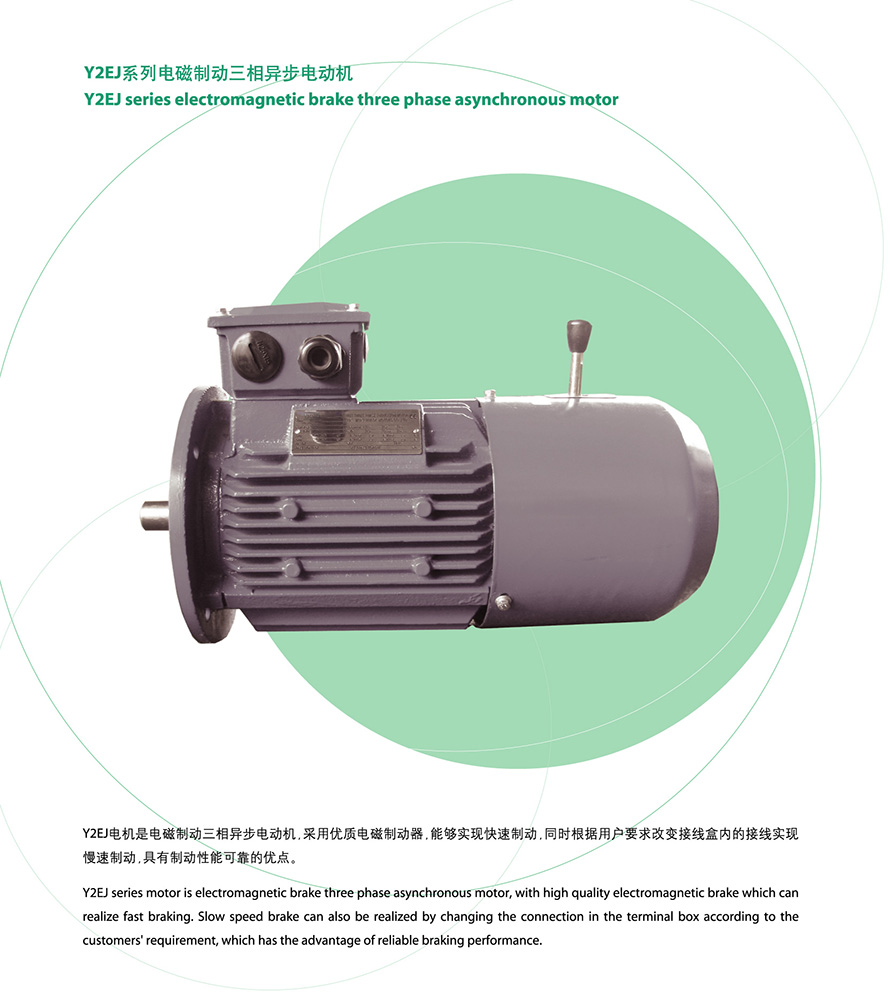

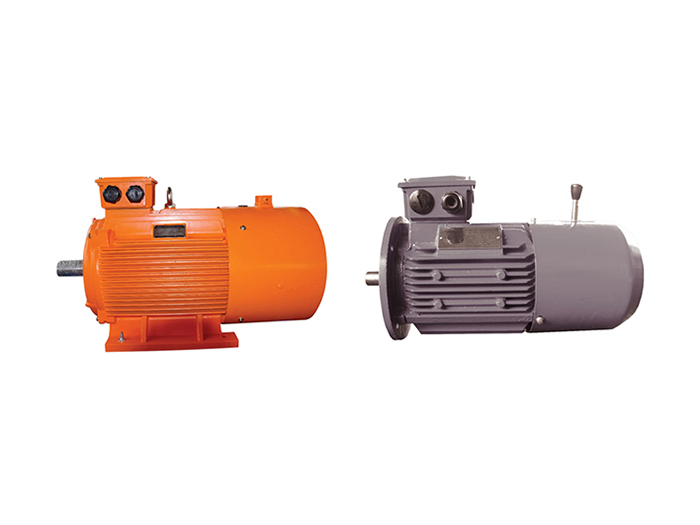

Y2EJ系列制動三相異步電動機
電動機簡介
       Y2EJ系列電磁制動電機是Y系列電機的派生系列，所以要了解Y系列電機參數的請看這里。Y2EJ系列電磁制動三相異步電動機是一種全封閉自扇冷式鼠籠型三相異步電機。該系列電機按照IEC標準設計，具有啟動轉矩大，結構緊湊、制動迅速、運行可靠、搞笑節能、噪音低等優點。此外，電機設計有手動釋放結構，既可以電磁制動，又可以手動操作，方便用戶調試和使用。
       Y2EJ系列電磁制動電機適用于要求快速停止、準確定位、往復運轉、頻繁啟動、防止滑行的各類機械設備中作為動力，如升降機、減速機、運輸機械、包裝機械、食品機械、印刷機械等。
       原理與結構：Y2EJ系列電磁制動電機的滯留圓盤制動器安裝在電機非軸伸端上，當電機接入電源，制動器即開始工作，在電磁引力作用下，電磁鐵吸引銜鐵并壓縮彈簧，制動盤與銜鐵、端蓋脫開，電機開始運轉；當切斷電源時，制動器電磁鐵市區陰歷，彈簧推動銜鐵壓緊制動盤，在摩擦力的作用下，電機立即停止工作。制動器分為通電制動器和失電制動器兩種，兩種制動器工作原理相同，而制動過程相反。
       Y2EJ系列電機可以衍生出YDEJ系列多俗制動電機和YVFEJ系列變頻制動電機，也可以根據需要把制動器裝配到Y(jié)E2系列電機上，成為Y2EJ2系列電磁制動電機。
       Y2EJ電機全稱是：Y2EJ系列電磁三相異步制動電機（簡稱：Y2EJ系列電磁制動電動機），是全封閉、自扇冷、鼠籠型附加直流電磁鐵制動器的三相異步電動機，是在Y系列電動機的后端蓋與風扇之間附加一個直流盤式電磁制動器組成，是Y系列的派生系列。

Motor introduction
Y2EJ series electromagnetic brake motor is a derivative series of Y series motor, so please understand here to understand the parameters of Y series motor. Y2EJ series electromagnetic brake three-phase asynchronous motor is a fully enclosed fan-cooled squirrel cage three-phase asynchronous motor. The series of motors are designed according to IEC standards and have the advantages of large starting torque, compact structure, fast braking, reliable operation, funny energy saving and low noise. In addition, the motor is designed with a manual release structure that can be either electromagnetically braked or manually operated for user commissioning and use.
Y2EJ series electromagnetic brake motor is suitable for power in all kinds of mechanical equipment that requires fast stop, accurate positioning, reciprocating operation, frequent start, and prevention of sliding, such as elevators, reducers, transportation machinery, packaging machinery, food machinery, printing machinery, etc. .
Principle and structure: The retaining disc brake of Y2EJ series electromagnetic brake motor is installed on the non-shaft extension end of the motor. When the motor is connected to the power supply, the brake will start working. Under the action of electromagnetic attraction, the electromagnet attracts the armature and compresses the spring. When the power plate is disconnected from the armature and the end cover, the motor starts to run; when the power is cut off, the brake electromagnet is in the urban lunar calendar, and the spring pushes the armature to press the brake disc. Under the action of the friction force, the motor immediately stops working. The brakes are divided into two types: the energized brake and the de-energized brake. The two brakes work in the same principle, and the braking process is reversed.
Y2EJ series motors can be derived from YDEJ series multi-function brake motor and YVFEJ series variable frequency brake motor. It can also be assembled to YE2 series motor as needed to become Y2EJ2 series electromagnetic brake motor.
Y2EJ motor full name is: Y2EJ series electromagnetic three-phase asynchronous brake motor (referred to as: Y2EJ series electromagnetic brake motor), is a three-phase asynchronous motor with fully enclosed, self-fan cooling, squirrel cage type DC electromagnet brake, is in Y series A DC disc type electromagnetic brake is added between the rear end cover of the motor and the fan, which is a derivative series of the Y series.

電動機使用條件
       環境溫度 -15℃～40℃
       海拔不超過1000米
       額定電壓 380V、400V、415V
       額定頻率 50Hz、60Hz
       接法 "額定功率3KW及以下電機為Y接法，
       額定功率4KW及以上電機為△接法"
       工作制連續工作制（S1）
       防護等級電機IP44/IP54
       制動器部分為IP23
       絕緣等級B級/F級
       冷卻方式IC0141

Motor use condition
Ambient temperature -15 ° C ~ 40 ° C
Altitude does not exceed 1000 meters
Rated voltage 380V, 400V, 415V
Rated frequency 50Hz, 60Hz
Connection method "The motor with rated power of 3KW and below is Y connection method.
The motor with rated power of 4KW and above is △ connection method"
Work system continuous work system (S1)
Protection class motor IP44/IP54
The brake part is IP23
Insulation class B / F
Cooling method IC0141

電機應用范圍
       適用于各類要求快速制動、準確定位、往復運轉、頻繁起動、制動的各種機械，作為主傳動和輔助傳之用的機械設備。例如：電動閥門、橡膠化工機械、金屬加工機床、包裝機械、木工機械、食品機械、化工機械、紡織機械、建筑機械以及齒輪減速機等。

Motor application range
Applicable to all kinds of machinery that require fast braking, accurate positioning, reciprocating operation, frequent starting and braking, as the main equipment for auxiliary transmission and auxiliary transmission. For example: electric valves, rubber chemical machinery, metal processing machine tools, packaging machinery, woodworking machinery, food machinery, chemical machinery, textile machinery, construction machinery and gear reducers.

特點
       制動可靠、制動力矩可調、轉子無軸向竄動、使用方便。
       Y2EJ電機標準型式
       電動機符合JB/T6428--92的要求。
       電動機額定電壓為380V，額定頻率為50HZ，外殼防護等級為IP44，制動器為IP23，冷卻方法為IC411，基準工作制為連續工作制SI，絕緣等級為B級。

Characteristics
Reliable braking, adjustable braking torque, no axial movement of the rotor, easy to use.
Y2EJ motor standard type
The motor complies with the requirements of JB/T6428--92.
The rated voltage of the motor is 380V, the rated frequency is 50HZ, the protection grade of the enclosure is IP44, the brake is IP23, the cooling method is IC411, the reference work is made of continuous working system SI, and the insulation grade is B grade.

原理與結構
       Y2EJ型制動電動機的直流圓盤制動器安裝在電機非軸伸端的端蓋上，當制動電動機接入電源，制動器也同時工作，由于電磁吸力作用電磁鐵吸引銜鐵并壓縮彈簧，制動盤與銜鐵、端蓋脫開，電動機開始連轉。當切斷電源時，制動器電磁鐵失去電磁吸力、彈簧推動銜鐵壓緊制動盤，在磨擦力矩的作用下，電動機立即停止轉動。

Principle and structure
The DC disc brake of the Y2EJ brake motor is mounted on the end cover of the non-shaft end of the motor. When the brake motor is connected to the power supply, the brake also works at the same time. Due to the electromagnetic attraction, the electromagnet attracts the armature and compresses the spring, and the brake disc is The armature and end cover are disengaged and the motor starts to rotate. When the power is cut off, the brake electromagnet loses the electromagnetic attraction, and the spring pushes the armature to press the brake disc. Under the action of the friction torque, the motor immediately stops rotating.

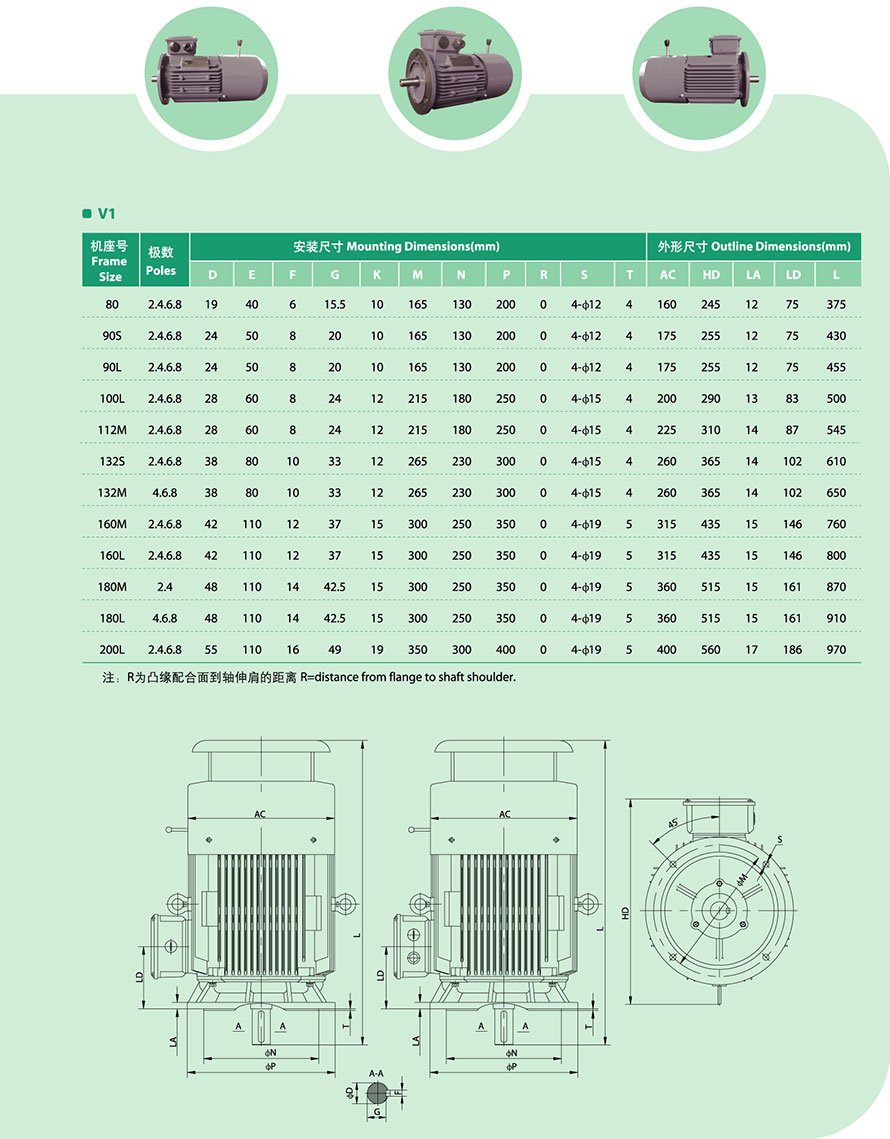

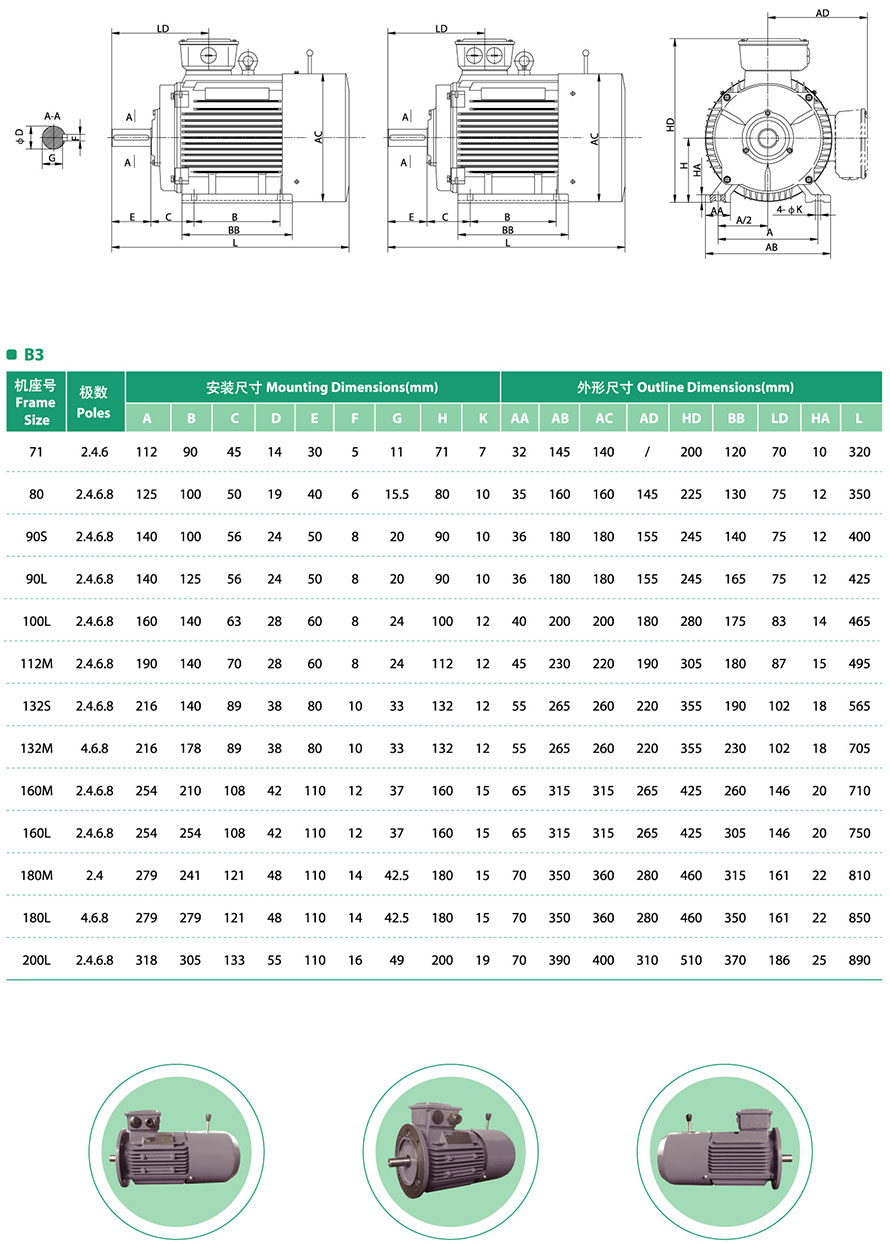

電機安裝形式
       B3：機座帶底腳，端蓋無凸絕。

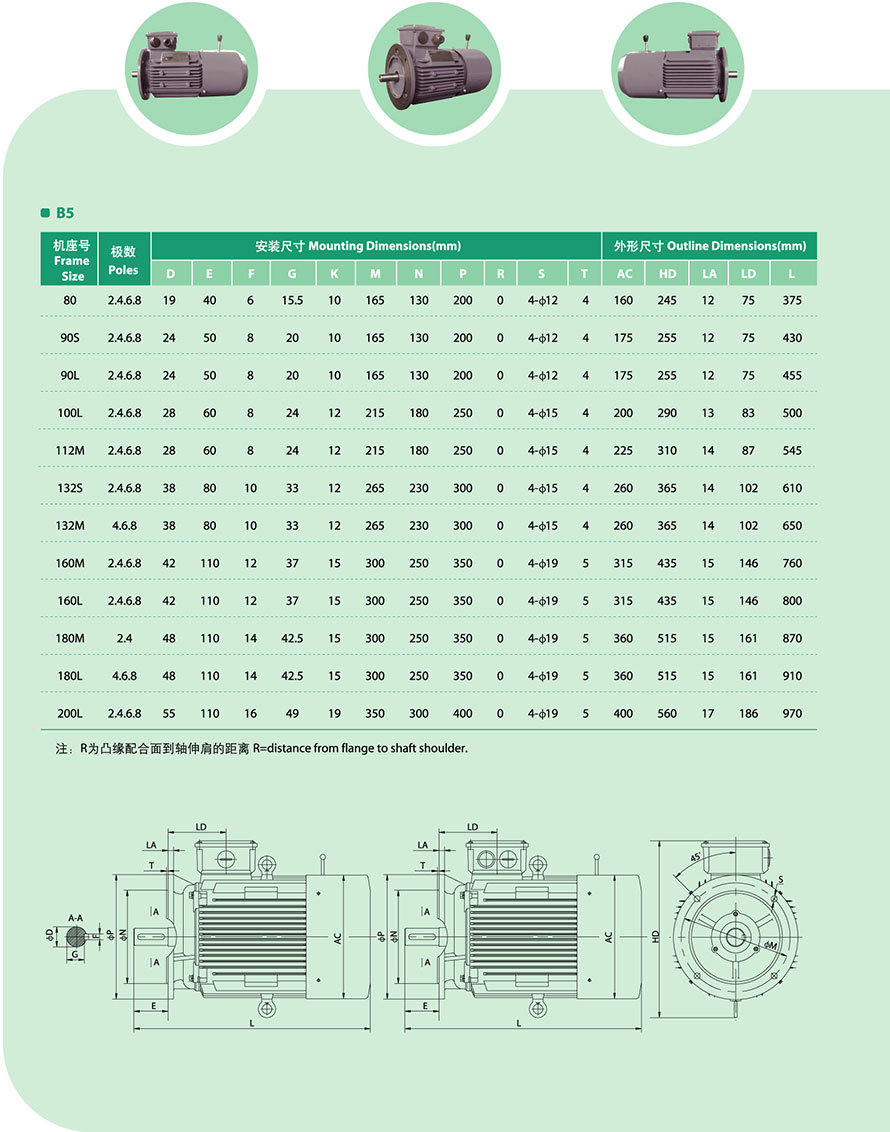

       B5：機座不帶底腳，端蓋有凸絕。

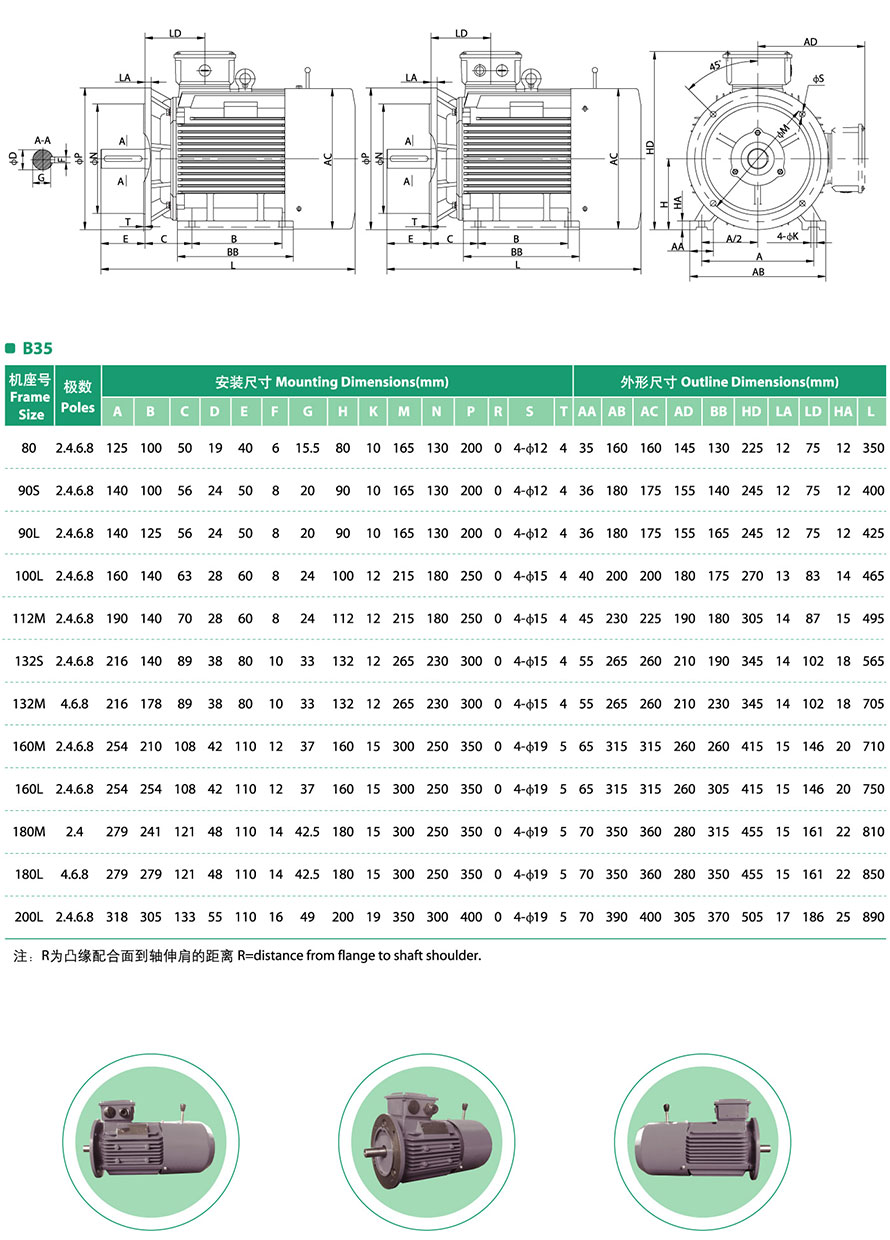

       B35：機座帶底腳，端蓋有凸絕。

Motor installation form
B3: The base has a foot and the end cover is not convex.
B5: The base does not have a foot, and the end cover is convex.
B35: The base has a foot and the end cover is convex.

電機特點
       1. 剎車器結構簡單，零件少，信賴性高，氣隙調整容易，保養方便；

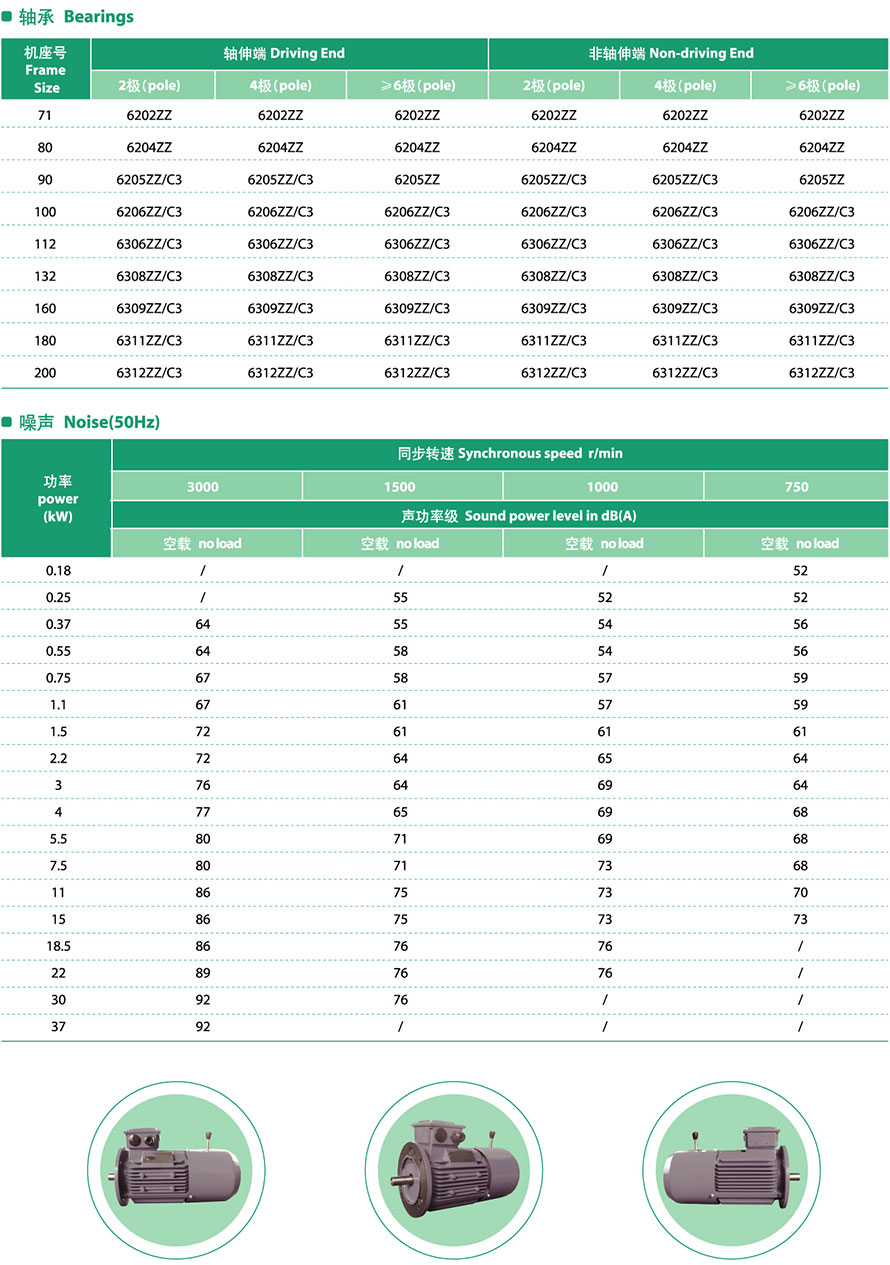

       2. 選用進口優良軸承，使用壽命長。
       3. 剎車頻度高。剎車片上使用特殊方式粘貼附上高質石棉板，可耐較高頻度的使用。磨耗率低，且無公害；
       4. 剎車器電源由電機直接供應，可依不同接線方式，取電壓（AC200～240V），經整流器整流為直流電源（DC80～100V）；
       5.采用DC直流剎車，無電磁聲，剎車噪音低；
       6. 體積小、重量輕、安裝容易。電機與剎車器連為一體，體積減至很小，重量亦輕。結構牢固，小空間即可安裝；外形及安裝尺寸性能參數同標準Y系列電機；

Motor characteristics
1. The brake has simple structure, few parts, high reliability, easy air gap adjustment and convenient maintenance;
2. The imported excellent bearing is used and has a long service life.
3. The braking frequency is high. The brake pads are attached to the high-quality asbestos board in a special way, which can withstand higher frequency. Low wear rate and no pollution;
4. The brake power supply is directly supplied by the motor. According to different wiring methods, the voltage (AC200～240V) can be taken and rectified into DC power supply (DC80～100V) by the rectifier;
5. Adopt DC DC brake, no electromagnetic sound, low brake noise;
6. Small size, light weight and easy to install. The motor and the brake are integrated into one, the volume is reduced to a small size and the weight is light. The structure is firm and can be installed in a small space; the shape and installation dimensions and performance parameters are the same as the standard Y series motor;

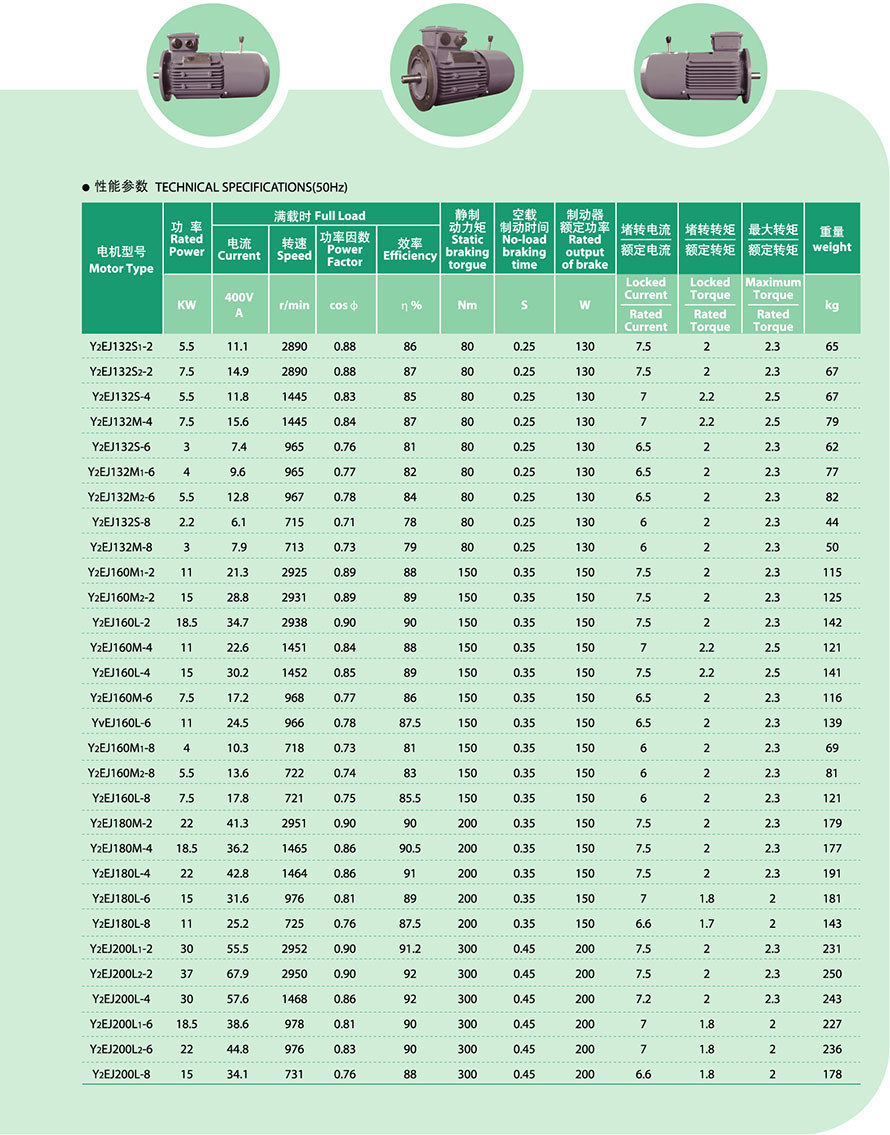

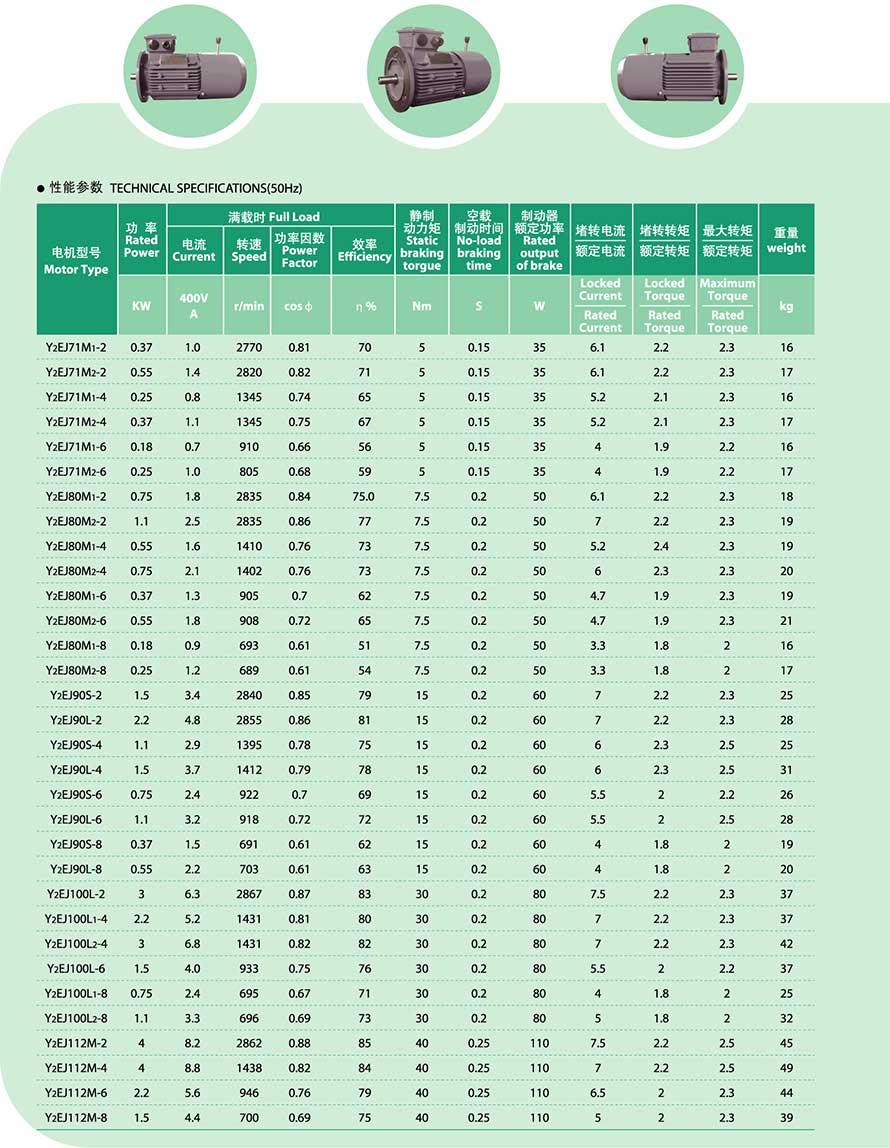

電機技術參數
Y2EJ系列電機技術參數 2極
電機型號 額定功率 滿載時 額定轉矩 堵轉轉矩 最大轉矩 堵轉電流 靜制動力矩 空載制動時間不大于 制動器功率
轉速 電流 效率 功率因素 額定轉矩 額定轉矩 額定電流
KW HP RPM Amp η% Cosφ N.m Tst/Tn Tmax/Tn lst/ln N.m S W
Y2EJ80M1-2 0.75 1.00  2825 1.81  75.0  0.84  2.54  2.2  2.3  6.5 7.5 0.2 50
Y2EJ80M2-2 1.1 1.5 2825 2.52  77.0  0.86  3.72  2.2  2.3  7.0  7.5 0.2 50
Y2EJ90S-2 1.5 2.0  2840 3.44  78.0  .85.86 5.04  2.2  2.3  7.0  15 0.2 60
Y2EJ90L-2 2.2 3.0  2840 4.83  80.5  87.00  7.40  2.2  2.3  7.0  15 0.2 60
Y2EJ100L-2 3.0  4.0  2870 6.39  82.0  0.87  9.98  2.2  2.3  7.0  30 0.2 80
Y2EJ112M-2 4.0  5.5 2880 8.17  85.5  0.88  13.3  2.2  2.3  7.0  40 0.25 110
Y2EJ132S1-2 5.5 7.5  2900 11.10  85.5  0.88  18.1  2.0  2.3  7.0  75 0.25 130
Y2EJ132S2-2 7.5 10.0  2900 15.00  86.2  0.88  24.7  2.0  2.3  7.0  75 0.25 130
Y2EJ160M1-2 11 15.0  2930 21.80  87.2  0.88  35.9  2.0  2.3  7.0  150 0.35 150
Y2EJ160M2-2 15 20 2930 29.40  88.2  0.89  48.9  2.0  2.2  7.0  150 0.35 150
Y2EJ160L-2 18.5 25 2930 35.5  89.0  0.88  60.3  2.0  2.2  7.0  150 0.35 150
Y2EJ180M-2 22 30 2940 42.2  89.0  0.89  71.5  2.0  2.2  7.0  200 0.35 150
Y2EJ200L1-2 30 40 2950 56.9  90.0  0.89  97.1  2.0  2.2  7.0  300 0.45 200
Y2EJ200L2-2 37 50 2950 69.8  90.5  0.89  119.8  2.0  2.2  7.0  300 0.45 200
Y2EJ225M-2 45 60 2960 83.9  91.5  0.89  145.2  2.0  2.2  7.0  450 0.45 200


Y2EJ系列電機技術參數 4極
電機型號 額定功率 滿載時 額定轉矩 堵轉轉矩 最大轉矩 堵轉電流 靜制動力矩 空載制動時間不大于 制動器功率
轉速 電流 效率 功率因素 額定轉矩 額定轉矩 額定電流
KW HP RPM Amp η% Cosφ N.m Tst/Tn Tmax/Tn lst/ln N.m S W
Y2EJ80M1-4 0.55 0.75  1390 1.51  73.0  0.76  3.78  2.4  2.3  6.0  7.5 0.2 50
Y2EJ80M2-4 0.75 1 1390 2.01  74.5  0.76  5.15  2.3  2.3  6.0  7.5 0.2 50
Y2EJ90S-4 1.1 1.5  1400 2.75  78.0  0.78  7.50  2.3  2.3  6.5  15 0.2 60
Y2EJ90L-4 1.5 2.0  1400 3.65  79.0  0.79  10.20  2.3  2.3  6.5  15 0.2 60
Y2EJ100L1-4 2.2  3.0  1420 5.03  81.0  0.82  14.80  2.2  2.3  7.0  30 0.2 80
Y2EJ100L2-4 3.0  4 1420 6.82  82.5  0.81  20.2  2.2  2.3  7.0  30 0.2 80
Y2EJ112M-4 4 5.5  1440 8.77  84.5  0.82  26.5  2.2  2.3  7.0  40 0.25 110
Y2EJ132S-4 5.5 7.5  1440 11.60  85.5  0.84  36.5  2.2  2.3  7.0  75 0.25 130
Y2EJ132M-4 7.5 10.0  1440 15.40  87.0  0.85  49.7  2.2  2.3  7.0  75 0.25 130
Y2EJ160M-4 11 15 1460 22.60  88.0  0.87  72.0  2.2  2.3  7.0  150 0.35 150
Y2EJ160L-4 15 20 1460 30.3  88.5  0.85  98.1  2.2  2.2  7.0  150 0.35 150
Y2EJ180M-4 18.5 25 1465 35.9  91.0  0.86  120.6  2.0  2.2  7.0  200 0.35 150
Y2EJ180L-4 22 30 1465 42.5  91.5  0.86  143.4  2.0  2.2  7.0  200 0.35 150
Y2EJ200L-4 30 40 1470 56.8  92.2  0.87  194.9  2.0  2.2  7.0  300 0.45 200
Y2EJ225S-4 37 50 1475 70.4  91.8  0.87  239.6  1.9  2.2  7.0  450 0.45 200
Y2EJ225M-4 45 60 1475 84.2  92.3  0.88  291.4  1.9  2.2  7.0  450 0.45 200

Y2EJ系列電機技術參數 6極
電機型號 額定功率 滿載時 額定轉矩 堵轉轉矩 最大轉矩 堵轉電流 靜制動力矩 空載制動時間不大于 制動器功率
轉速 電流 效率 功率因素 額定轉矩 額定轉矩 額定電流
KW HP RPM Amp η% Cosφ N.m Tst/Tn Tmax/Tn lst/ln N.m S W
Y2EJ90S-6 0.75 1.0  910 2.25  72.5  0.70  7.87  2.0  2.2  5.5  15 0.2 60
Y2EJ90L-6 1.1 1.5  910 3.16  73.5  0.72  11.50  2.0  2.2  5.5  15 0.2 60
Y2EJ100L-6 1.5  2.0  930 3.97  77.5  0.74  15.40  2.0  2.2  6.0  30 0.2 80
Y2EJ112M-6 2.2  3 940 5.61  80.5  0.74  22.4  2.0  2.2  6.0  40 0.25 110
Y2EJ132S-6 3 4.0  960 7.23  83.0  0.76  29.8  2.0  2.2  6.5  75 0.25 130
Y2EJ132M1-6 4 5.5  960 9.40  84.0  0.77  39.8  2.0  2.2  6.5  75 0.25 130
Y2EJ132M2-6 5.5 7.5  960 12.60  85.3  0.78  54.7  2.0  2.0  6.5  75 0.25 130
Y2EJ160M-6 7.5 10 970 17.00  86.0  0.78  73.8  2.0  2.0  6.5  150 0.35 150
Y2EJ160L-6 11 15 970 24.6  87.0  0.78  108.3  2.0  2.0  6.5  150 0.35 150
Y2EJ180L-6 15 20 970 31.4  89.5  0.81  147.7  1.8  2.0  6.5  200 0.35 150
Y2EJ200L1-6 18.5 25 975 37.7  89.8  0.83  181.2  1.8  2.0  6.5  300 0.45 200
Y2EJ200L2-6 22 30 975 44.6  90.2  0.83  215.5  1.8  2.0  6.5  300 0.45 200
Y2EJ225M-6 30 40 980 59.5  90.2  0.85  292.3  1.7  2.0  6.5  450 0.45 200

Y2EJ系列電機技術參數 8極
電機型號 額定功率 滿載時 額定轉矩 堵轉轉矩 最大轉矩 堵轉電流 靜制動力矩 空載制動時間不大于 制動器功率
轉速 電流 效率 功率因素 額定轉矩 額定轉矩 額定電流
KW HP RPM Amp η% Cosφ N.m Tst/Tn Tmax/Tn lst/ln N.m S W
Y2EJ132S-8 2.2 3.0  710 5.87  80.2  0.72  29.60  2.0  2.0  5.5  75 0.25 130
Y2EJ132M-8 3 4.0  710 7.72  82.0  0.72  40.40  2.0  2.0  5.5  75 0.25 130
Y2EJ160M1-8 4.0  5.5  720 9.90  84.0  0.73  53.10  2.0  2.0  6.0  150 0.35 150
Y2EJ160M2-8 5.5  7.5 720 13.30  85.0  0.74  73.0  2.0  2.0  6.0  150 0.35 150
Y2EJ160L-8 7.5 10.0  720 17.70  86.0  0.75  99.5  2.0  2.0  5.5  150 0.35 150
Y2EJ180L-8 11 15.0  730 24.80  87.5  0.77  143.9  1.7  2.0  6.0  200 0.35 150
Y2EJ200L-8 15 20.0  730 34.10  88.0  0.76  196.2  1.8  2.0  6.0  300 0.45 200
Y2EJ225S-8 18.5 25 730 41.30  89.5  0.76  242.0  1.7  2.0  6.0  450 0.45 200
Y2EJ225M-8 22 30 730 47.6  90.0  0.78  287.8  1.8  2.0  6.0  450 0.45 200

電動機型號
Y2EJ132S-8 Y2EJ90S-6 Y2EJ80M1-4 Y2EJ80M1-2
Y2EJ132M-8 Y2EJ90L-6 Y2EJ80M2-4 Y2EJ80M2-2
Y2EJ160M1-8 Y2EJ100L-6 Y2EJ90S-4 Y2EJ90S-2
Y2EJ160M2-8 Y2EJ112M-6 Y2EJ90L-4 Y2EJ90L-2
Y2EJ160L-8 Y2EJ132S-6 Y2EJ100L1-4 Y2EJ100L-2
Y2EJ180L-8 Y2EJ132M1-6 Y2EJ100L2-4 Y2EJ112M-2
Y2EJ200L-8 Y2EJ132M2-6 Y2EJ112M-4 Y2EJ132S1-2
Y2EJ225S-8 Y2EJ160M-6 Y2EJ132S-4 Y2EJ132S2-2
Y2EJ225M-8 Y2EJ160L-6 Y2EJ132M-4 Y2EJ160M1-2
Y2EJ180L-4 Y2EJ180L-6 Y2EJ160M-4 Y2EJ160M2-2
Y2EJ200L-4 Y2EJ200L1-6 Y2EJ160L-4 Y2EJ160L-2
Y2EJ225S-4 Y2EJ200L2-6 Y2EJ180M-4 Y2EJ180M-2
Y2EJ225M-4 Y2EJ225M-6 Y2EJ225M-2 Y2EJ200L1-2
Y2EJ225M-4 Y2EJ225M-6 Y2EJ225M-2 Y2EJ200L2-2
